Best Layouts for Small Condo Kitchens

Most Toronto condo kitchens give you 60 to 150 square feet to work with.

Recent real estate data shows the average new CA condo size has shrunk to under 600 square feet. We see this daily in our design practice.

That tight footprint is actually plenty of space for a small condo kitchen layout to perform brilliantly. Proper planning makes all the difference.

Let’s break down the data on the four layouts we design most often and explore practical ways to respond.

The four condo layouts

Almost every successful downtown Toronto condo kitchen uses one of four specific floor plans: the galley, L-shape, single-wall, or open-plan. Our team relies on these core structures because they maximize function within rigid building constraints.

A typical cabinet installation costs $500 to $650 per linear foot in CA. Choosing the right shape directly controls your final budget.

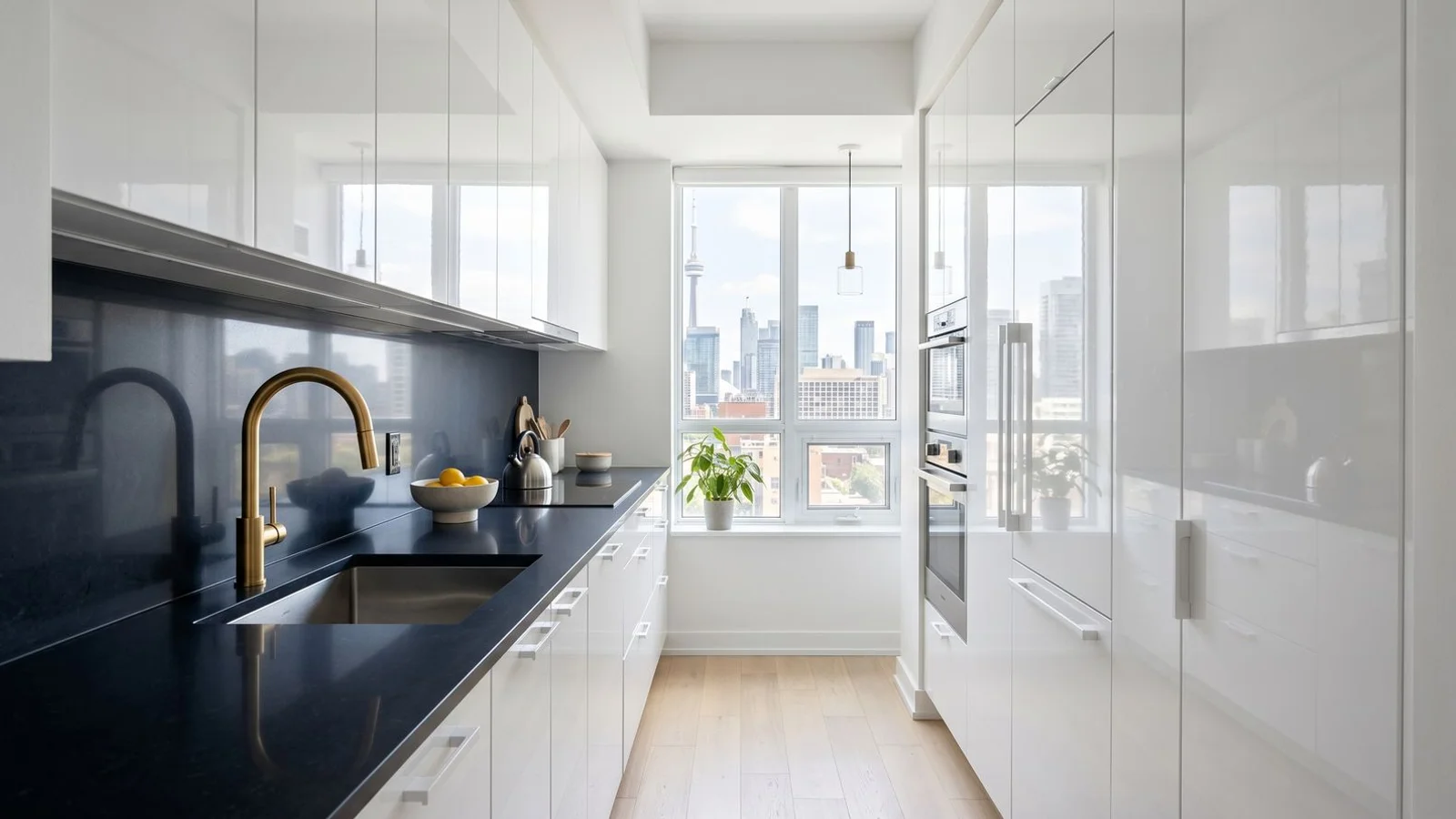

Galley: the most common condo layout

A galley kitchen features two parallel counter runs facing each other, separated by a central walkway. Our installers frequently build these in narrow units where space is at an absolute premium.

National Kitchen and Bath Association guidelines require 42 to 48 inches of walking space between opposite counters. This precise spacing ensures two people can safely open opposing appliance doors.

Best for:

• Narrow downtown condos.
• Single-cook households.
• Layouts where one wall is exterior glazing (no upper cabinets possible on that side).

Strengths:

• Maximum counter and storage in a minimum footprint.
• Efficient cooking zones with a tight work triangle.
• Two cooks can work simultaneously if separated by task (one prepping, one cleaning).

Trade-offs:

• Two cooks crossing paths can feel cramped during busy meal prep.
• Less casual seating is available since there is no island or peninsula for breakfast.
• Upper cabinet planning requires extra care when one wall has windows.

Typical CA condo footprint: 60 to 100 sqft total kitchen area.

We solve the cramped aisle problem by specifying premium counter-depth appliances. The Fisher & Paykel 24-inch Integrated series refrigerator is a current favourite for CA renovations because it sits completely flush with the surrounding cabinetry.

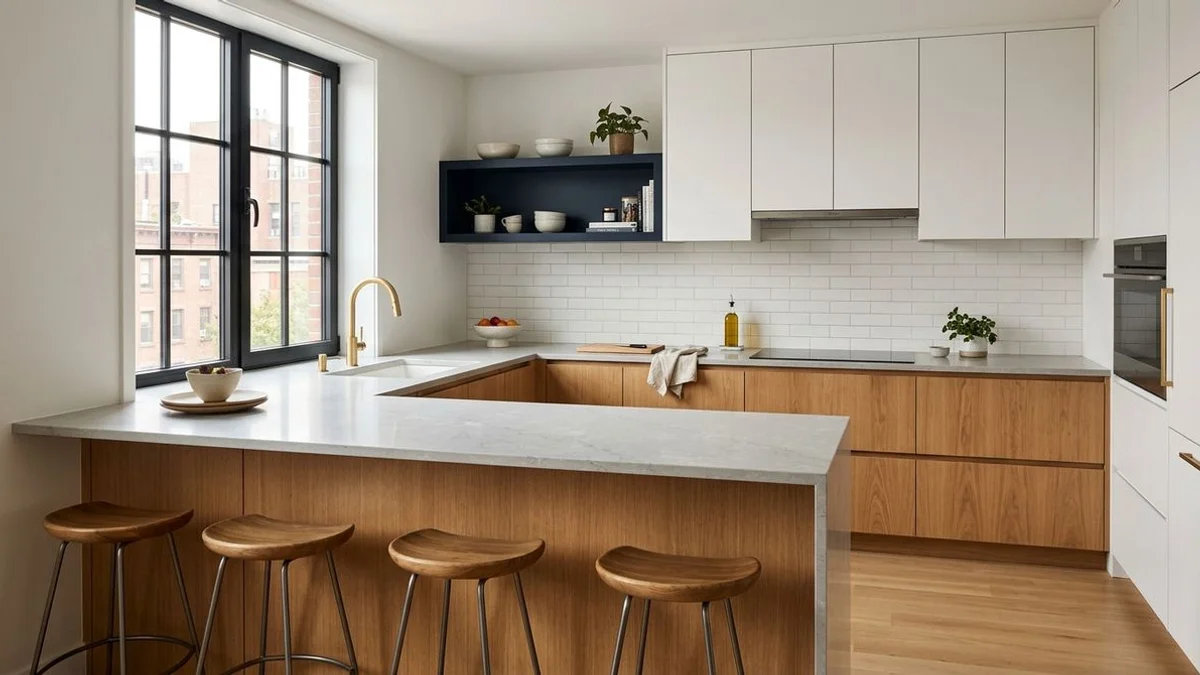

L-shape with peninsula: the family condo default

An L-shape design uses two perpendicular counter runs with an extended peninsula for casual seating. Our designers extend one of the legs into the open living space to create this feature.

A standard seating overhang requires 12 to 15 inches of countertop depth to be comfortable. This addition provides a functional dining space without requiring a full table.

Best for:

• One-bedroom-plus-den and two-bedroom condos.
• Family-sized condos in midtown and the suburbs.
• Owners who want bar seating or breakfast-counter space.

Strengths:

• Distinct prep zone and clean-up zone.
• Casual seating without dedicating a separate dining area.
• Open feeling because the peninsula does not fully wall off the kitchen.

Trade-offs:

• The open side requires at least 42 inches of clearance.
• Corner cabinet spaces waste square footage without specialized hardware.
• Storage capacity is slightly lower than a galley in the same footprint.

Typical CA condo footprint: 100 to 150 sqft total kitchen area.

We always specify a Kesseböhmer Le Mans pull-out system in the blind corner where the L meets. This mechanical shelf swings out entirely, turning wasted space into highly accessible storage for heavy pots and pans.

Single-wall: for studios and bachelors

A single-wall kitchen places all cabinets, counters, and appliances along one continuous wall. Our clients choose this minimalist layout to preserve every possible inch of living area.

You eliminate the need for a second cabinet run, an island, or a peninsula. This straightforward design significantly reduces material and plumbing costs.

Best for:

• Studio and bachelor units.
• Loft-style spaces with one structural wall available.
• Owners who cook minimally and prioritize living-area space.

Strengths:

• Zero impact on the living-area footprint.
• Clean architectural look makes the kitchen read as a feature wall.
• Lowest average renovation cost due to having the least cabinetry and simplest plumbing.

Trade-offs:

• Counter space and storage are severely limited.
• The work triangle is compressed, placing the sink, stove, and fridge all on one line.
• Prep work often requires a moveable island cart or freestanding piece.

Typical CA condo footprint: 35 to 70 sqft.

We recommend using compact 24-inch ranges from CA-available brands like Blomberg or Bosch for these tight walls. Choosing smaller appliances reclaims valuable linear inches to create a dedicated food preparation zone.

Open-plan integration: the renovation favourite

Open-plan integration involves removing a dividing wall to merge a closed kitchen directly with the living area. Our structural crews handle these transformations frequently in older CA high-rises.

This dramatic change makes the entire unit feel significantly larger and improves natural light penetration. Mid-range open-plan kitchen renovations in Toronto typically cost between $30,000 and $55,000 as of 2026. This average budget accounts for the necessary engineering reports and structural modifications.

Best for:

• Pre-2000 condos where the kitchen was originally designed as a closed room.
• Owners who entertain and want clear sightlines from kitchen to dining.
• Buildings where the dividing wall is not load-bearing.

Strengths:

• Dramatic transformation makes the property feel like a much larger unit.
• Interior spaces gain much better light penetration.
• Modernized layouts generate strong resale value.

Trade-offs:

• The required board approval adds 2 to 4 weeks to the project timeline.
• A structural beam is mandatory if the wall carries any load.
• Strong range hoods are essential because cooking smells spread to the living area.

We regularly manage concrete post-tension slabs during these high-rise modifications. These specific CA building slabs restrict floor channeling, which strictly limits where you can relocate your sink drain or plumbing stacks.

Key considerations for any condo layout

The most critical considerations for any small condo kitchen layout involve optimizing the work triangle, maximizing vertical storage, and scaling your appliances. Our process starts by mapping out the fundamental movement patterns before choosing a single cabinet. Evaluating small kitchen layout ideas requires strict adherence to these functional rules.

The work triangle standards

The work triangle is a National Kitchen and Bath Association (NKBA) design standard that positions the sink, stove, and fridge at three functional points.

• Each leg of the triangle should measure 4 to 9 feet.
• The total triangle perimeter must stay under 26 feet.
• Major traffic paths cannot cross through the triangle space.

Storage maximization strategies

Maximizing storage requires using full-height ceiling cabinets and specialized pull-out inserts for deep corners.

• Toronto condos almost always have 8-foot ceilings, so you must use the full height for upper cabinets.
• Install narrow pull-out pantries from brands like Rev-A-Shelf in any 6-inch or 9-inch gap.
• Mount mechanical Le Mans corner solutions inside base cabinets where corners exist.
• Specify drawer banks instead of cabinets with stationary shelves wherever possible.

Appliance scaling for small footprints

Proper appliance scaling involves selecting compact 18-inch or 24-inch models instead of standard suburban-sized units.

• Select an 18-inch Bosch compact dishwasher for tight studios, or a standard 24-inch model if space permits.
• Choose a 24-inch compact range instead of a bulky 30-inch model.
• Install a counter-depth fridge that is exactly 24 inches deep to save crucial floor space.
• Place a combination microwave and wall oven directly over the range to maximize counter area.

Picking your layout

Selecting the best layout requires evaluating your existing load-bearing walls, available square footage, and budget. Our designers use 2020 Design Live software to bring 3D rendering and physical samples to every CA consultation. A visual walkthrough clarifies exactly how the new layout will function before construction begins.

Consider these exact factors to finalize your direction:

• Existing layout and walls (identifying what is load-bearing).
• Total kitchen footprint and specific room shape.
• Number of daily cooks and how often the kitchen is used.
• Your desire for casual seating, an island, or open-plan flow.
• Budget direction based on current 2026 material costs.

Browse our condo kitchen renovation service for the broader project context, or book a free in-suite consultation to walk through layout options for your specific unit. For the storage strategies that make condo kitchens functional, see our condo kitchen storage ideas guide.
